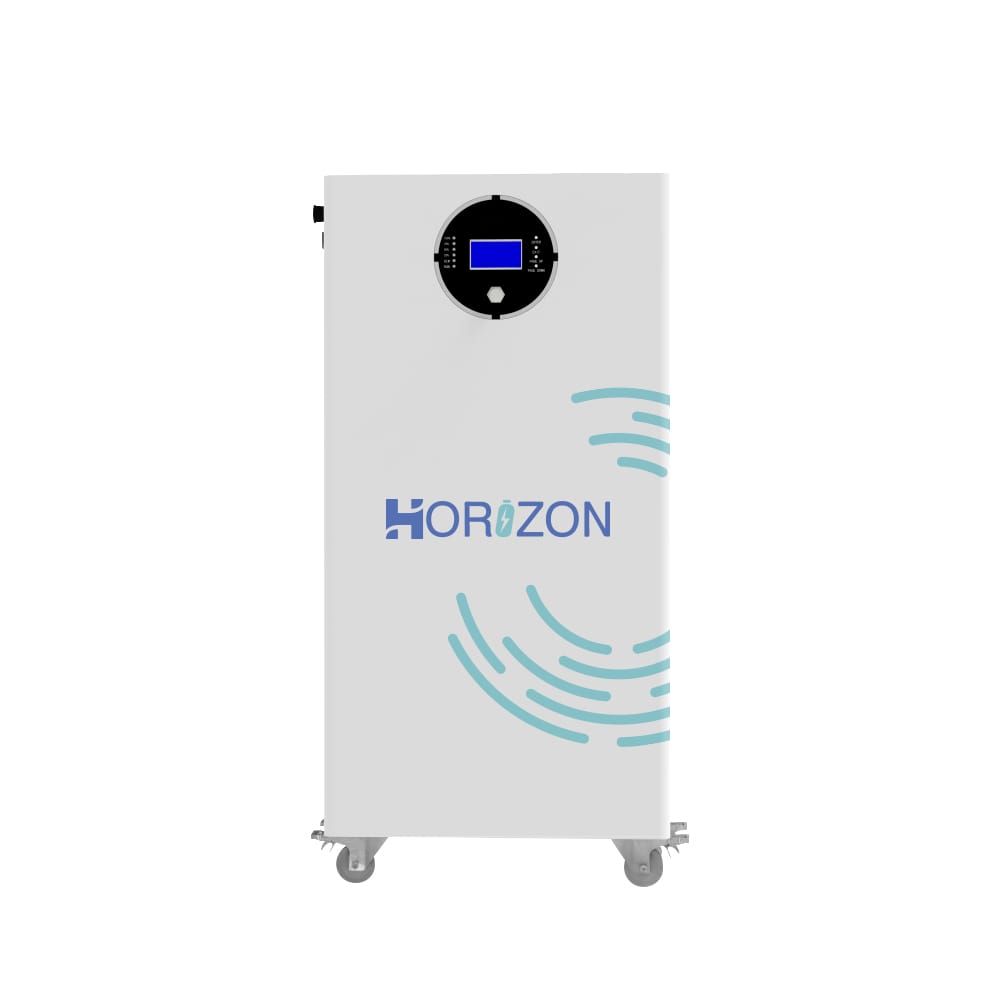

The HORIZON H 16-48314 battery, with a 16 kWh capacity and a nominal voltage of 48 V, is a powerful and safe lithium battery designed for energy storage in solar systems as well as small residential and commercial applications. Using LiFePO4 technology, this model offers a long lifespan (over 6000 cycles), 90% depth of discharge, and high efficiency.
Advantages:
- High storage capacity: 16 kWh
- Nominal voltage: 48 V
- Long cycle life: over 6000 charge/discharge cycles
- Smart protection system (built-in BMS)
- Compatible with inverters via CAN and RS485 protocols
- Easy installation and user-friendly design for home use
Technical Specifications of HORIZON H 16-48314 Battery
| Feature | Specification |
|---|---|
| Model | HORIZON H 16-48314 |
| Total Capacity | 16 kWh |
| Nominal Voltage | 48 V |
| Nominal Capacity | 314 Ah |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Cell Configuration | 1P16S |
| Cycle Life | Over 6000 charge/discharge cycles |
| Depth of Discharge (DOD) | 90% |
| Max Charge/Discharge Current | 157 A |
| Operating Voltage Range | 43.2 – 57.6 V |
| Charge Operating Temperature | 0 to +55°C |
| Discharge Operating Temperature | -20 to +55°C |
| Allowed Humidity | 5% – 95% RH (non-condensing) |
| Maximum Operating Altitude | Below 4000 meters |
| Cooling System | Natural cooling |
| Protection Rating | IP21 |
| Communication | CAN & RS485 |
| Scalability | Up to 15 units |
| Dimensions (W × H × D) | 460 × 892 × 253.5 mm |
| Approximate Weight | About 120 kg |
